This project involves the design of a phase-locked loop (PLL) based tunable clock generator, incorporating a Phase Detector (PD), Loop Filter (LP), Oscillator, and Clock Dividers. These components work together to provide stable and accurate phase synchronization. The design features a 2nd order loop filter and a Voltage-Controlled Oscillator (VCO) with differential output frequencies ranging from 180-200 MHz and 90- 110 MHz, catering to the ADC and DAC needs of lab bench setups for Analog Discoveries. It achieves impressive performance metrics, including a jitter of 500 fs and phase noise of less than -100 dBc/Hz at 1 MHz. The design has been implemented and simulated using open-source IC design tools: Xschem, Netgen, Magic, and KLayout, using the GF180mcu process design kit (PDK).
A 12-Bit Segmented Current Steering digital-to-analog converter (DAC) was designed on GF18MCU PDK. The DAC achieves an update rate of 10 MS/s and an effective number of bits (ENOB) greater than 9, with intermodulation distortion better than -60 dB. The most significant bits (MSBs) are implemented using thermometer coding (unary), while the least significant bits (LSBs) utilize binary coding. The design achieves a maximum differential nonlinearity (DNL) of 0.39 LSBs and an integral nonlinearity (INL) of -0.83 LSBs.

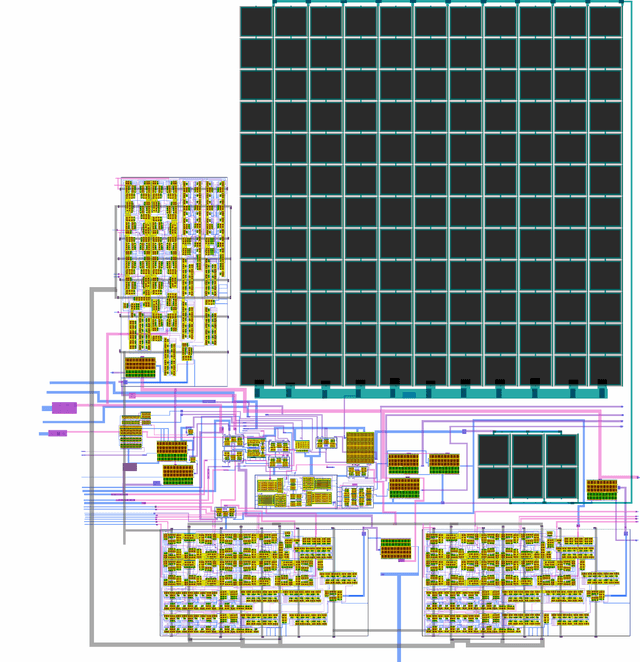

Layout of 12-Bit Segmented Current Steering DAC

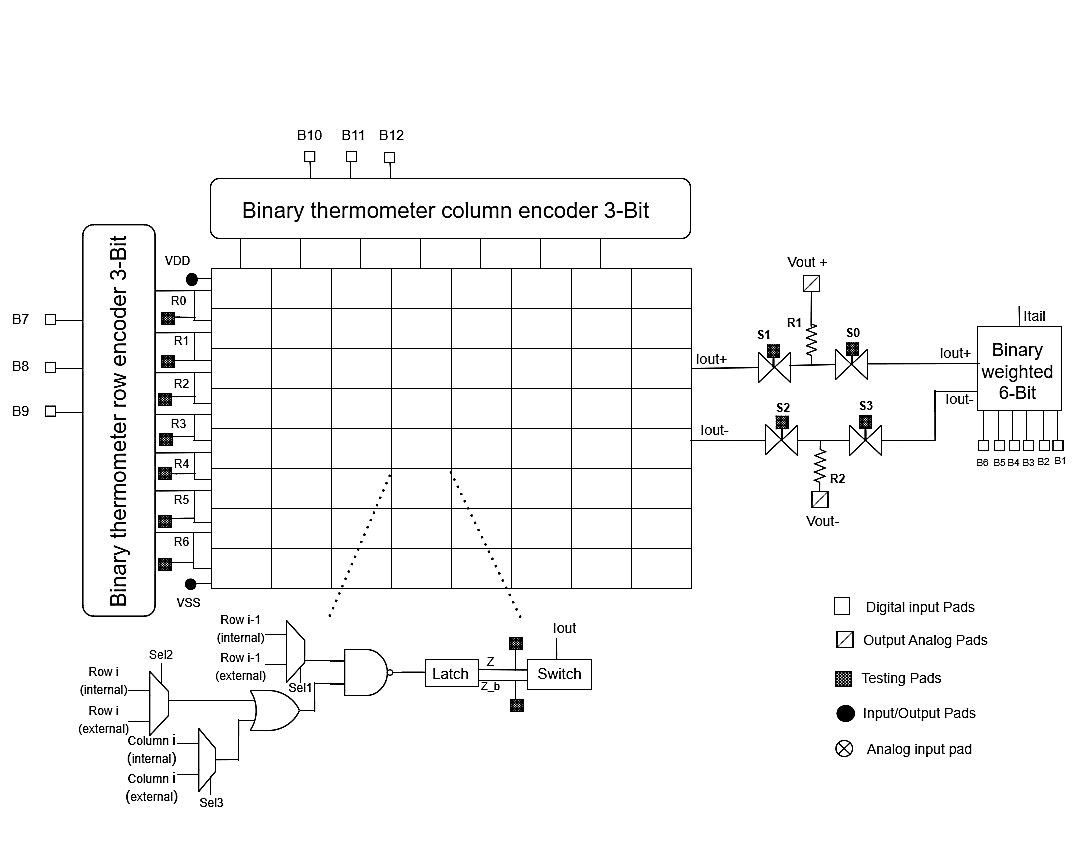

Block Diagram of 12-Bit Segmented Current Steering DAC
The primary goal of the proposed Phase-Locked Loop (PLL) is to generate a differential, 1 MHz to 128 MHz programmable clock with step size of 1 MHz. This design is meticulously crafted to minimize jitter and phase noise, ensuring a high Signal-to-Noise Ratio (SNR) in data converters. The Phase-Locked Loop (PLL) consists of Phase Frequency Detector (PFD), Charge Pump, Loop Filter, Voltage Controlled Oscillator (VCO), and Programmable N-Divider.

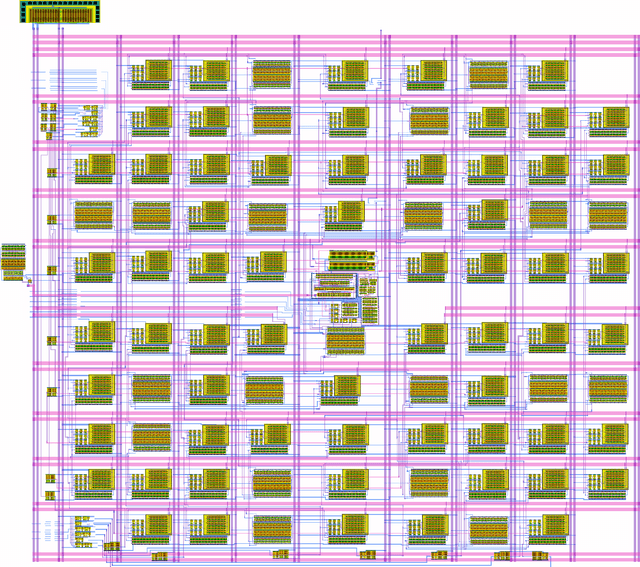

Layout of Differential Clock Generator

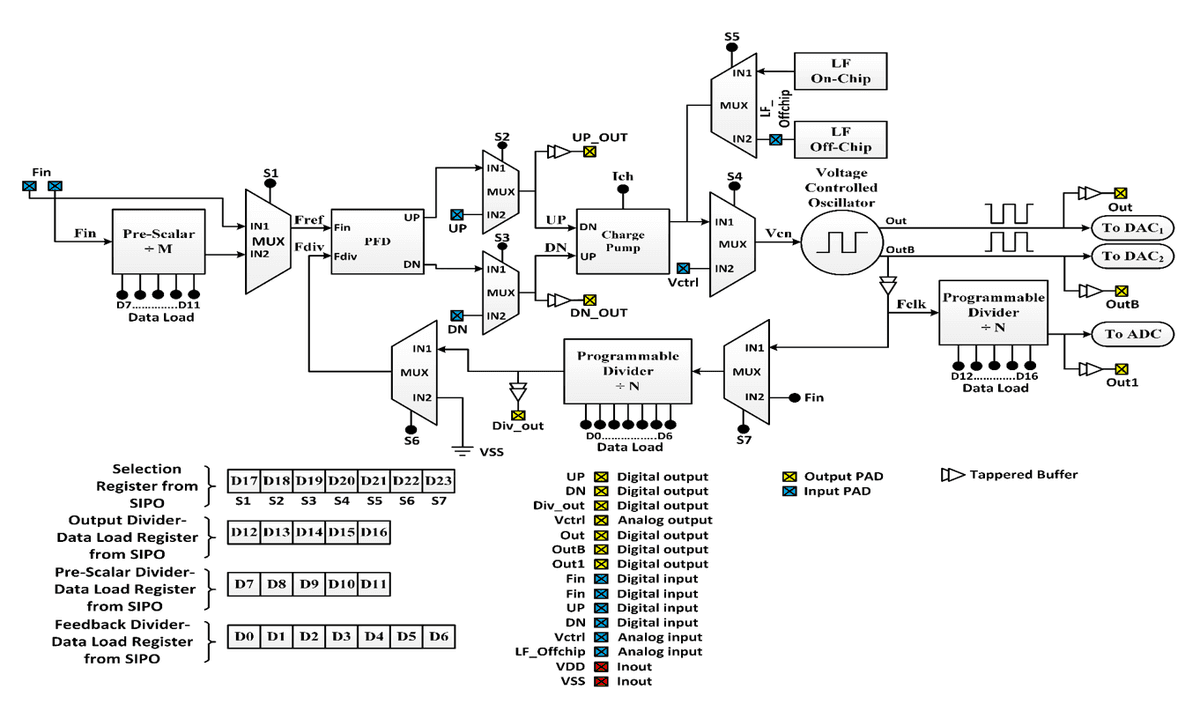

Block Diagram of Differential Clock Generator
The AWG Mux and Signal Conditioning module, part of a "lab bench on a chip" system, features several components: transimpedance stage, buffer, differential op-amp, low-pass filter, and differential DEMUX. The design meets the required specifications of 5.3 MHz bandwidth, 138 mV/µs slew rate, and 497 fF load capacitance. Utilizing a cascode folded op-amp, it achieves high bandwidth, slew rate, and gain. This configuration ensures precise signal conditioning and waveform generation, making it effective for analog circuit characterization and testing.

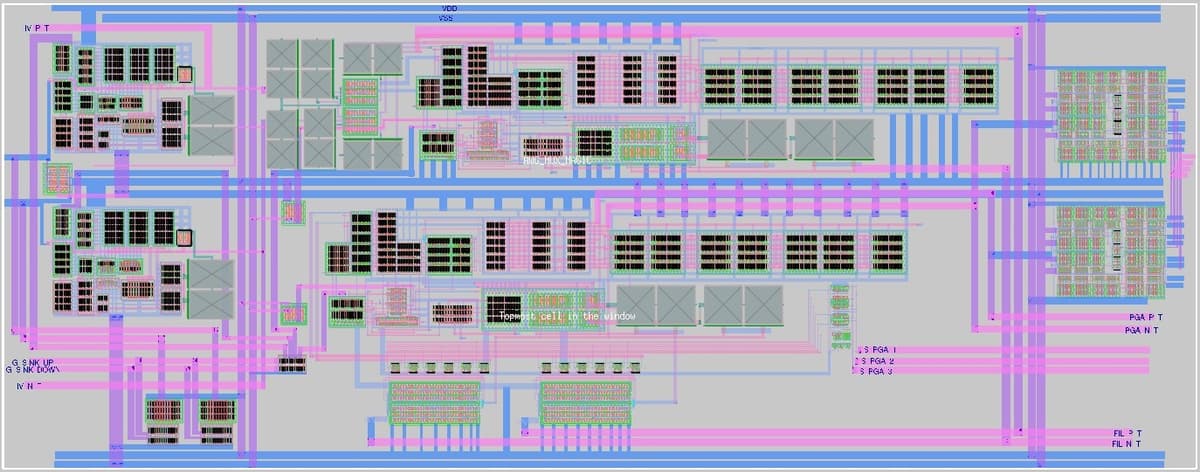

Layout of AWG Mux and Signal Conditioning

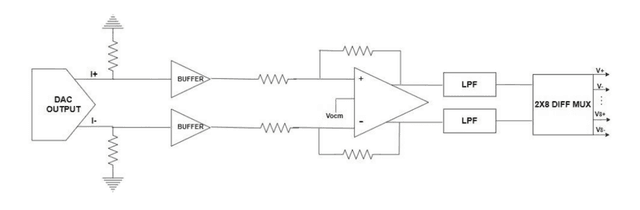

Block Diagram of AWG Mux and Signal Conditioning
